clothes dryer
Classification：
Product Introduction
peter@hvacrequip.com
Product Details
Product Advantage
Forward and reverse air circulation
The circulating fan can be timed to circulate in both forward and reverse directions, making the temperature of the drying room more uniform.
No need to install
The unit has a built-in large air volume circulating fan, which can be directly connected with the drying room to start operation.
High efficiency and energy saving
Adopting jet technology, the unit can operate stably at a low temperature of -10℃, and the heating performance is still strong.
Modularized combination
Integral dryer and drying room can be standardized modular combination, which is more convenient to use and more flexible to install.
Safety and environmental protection
Heat pump technology, environmental protection refrigerant, eliminating flammable, explosive, electric leakage and other safety hazards, and without any exhaust emissions, safe and more environmentally friendly.
Intelligent frost
Automatically according to the parameters of intelligent, accurate judgment of frost, frost defrost, no frost normal heating, maximize the heating time.

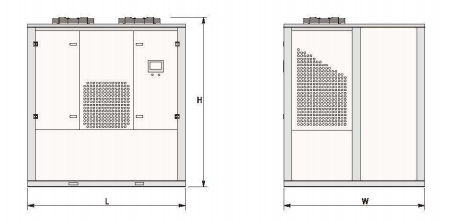

Overall Dimension

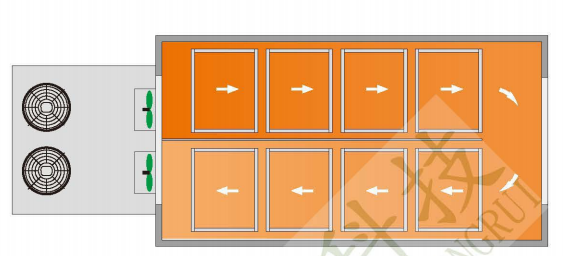

Installation diagram
Gigi Parameters
|
Typology |
|
14P Integral Heat Pump Drying Unit |
|
|
Applications |
Operating temperature range |
℃ |
-5~43 |
| Drying temperature range | ℃ |
30~75 |
|
|
Parameters |
Unit Model |
|
ZRH-Z014S/KG |
|
Rated Heating |
|
42 |
|
|
Heating power |
|
13.1 |
|
| Power supply type |
|
380V/3PH/50HZ |
|
|
Compressor type |
|
High Temperature Enhanced Enthalpy Jet Scroll Compressors | |
| Number of compressors |
mm |
2 |
|
|
Refrigerants |
kg |
Low-temperature high-efficiency refrigerants | |
| Wet exhaust fan power |
kW |
0.55 |
|
| Damping fan air volume |
m²/h |
2500 |
|
| Circulation fan power |
kW |
4×2.2 |
|
| Circulation fan air volume |
m²/h |
4×14500 |
|
| Auxiliary electric heating power |
kW |
12 |
|
|
Vibration |
dB |
68 |
|
| Overall dimensions |
mT |
2200×1785×2050 |
|
|
Weights |
kg |
625 |
|
Standard test conditions: Outdoor side: dry bulb temperature 20℃, warm bulb temperature 15℃; Indoor side: dry bulb temperature 60℃, wet bulb temperature 35℃.
Moisture discharge is calibrated under standard test conditions, which may vary due to changes in indoor and outdoor wet bulb temperatures.
Models, parameters, performance will be changed due to product improvement without prior notice, the specific parameters are subject to the product nameplate.
